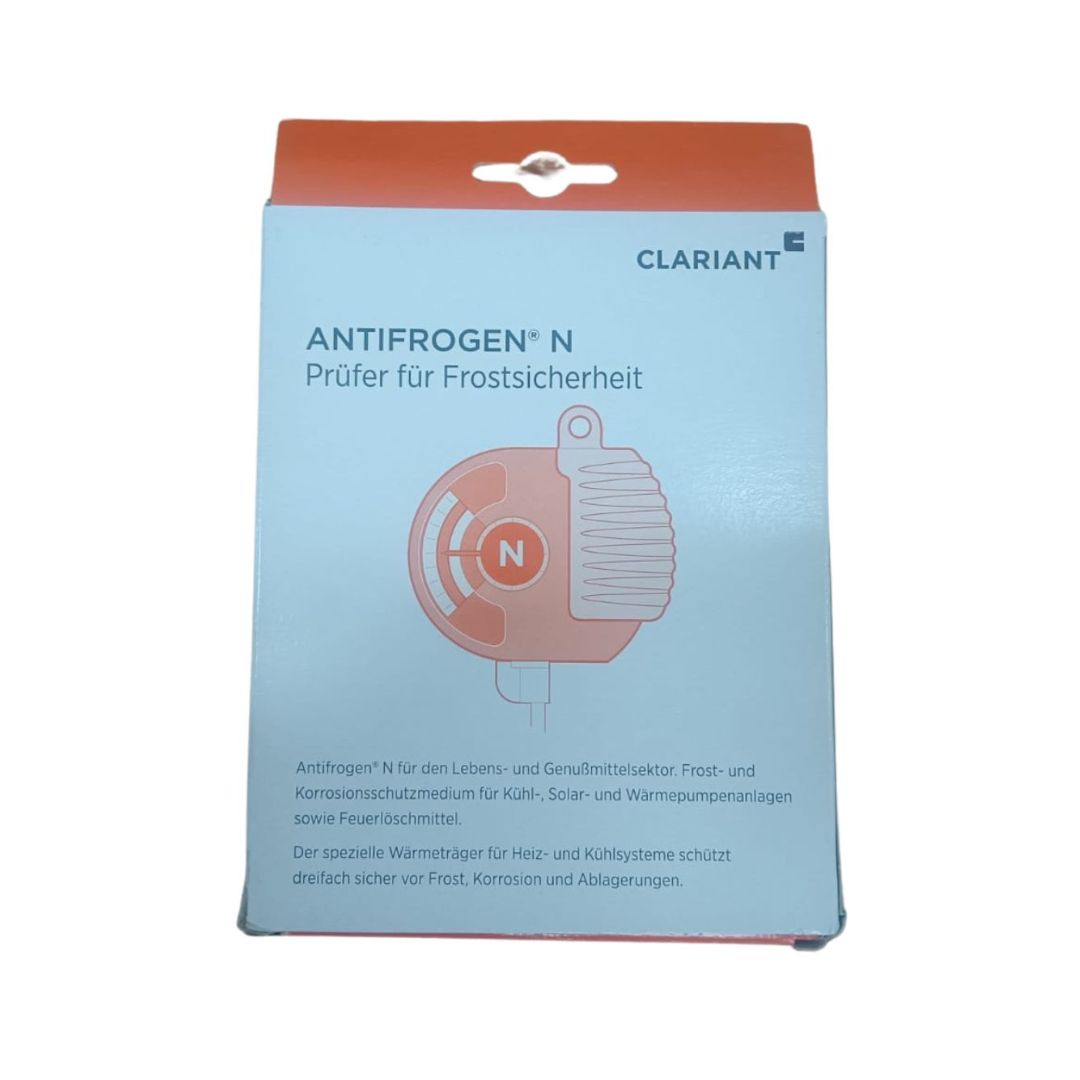

Tester For Clariant Antifrogen N

This Tester For Antifrogen N is designed to measure the frost resistance of Antifrogen N aqueous solutions. It ensures accurate readings across a wide temperature range, from +15C to +50C, making it an essential tool for professionals working in cooling circuits and heating systems.

Areas of Application:

• Cooling Circuits: Ensures the frost resistance of Tester Clariant Antifrogen N in cooling applications for reliable operation.
• Heating Systems: Helps maintain optimal performance by accurately measuring the frost resistance of Antifrogen N in heating systems.

Device Features of Tester Antifrogen N :

• Technically Perfect and Modern Design: This tester offers a sleek, efficient design that makes it easy to handle and use.
• Simple, Fast, and Accurate Measurements: The device provides precise results quickly, ensuring users get reliable data without delays.
• Stable Plastic Body: The robust plastic construction provides durability and long-term use in various environments.
• Penetrating Arrow - Vertical Position Not Required: The measuring arrow penetrates easily without the need to keep the device in a specific position, making it user-friendly.
• Automatic Temperature Compensation: The device automatically adjusts for temperature differences, ensuring accurate readings at varying operational temperatures.
• Leak-Proof with Turning Valve: Equipped with a turning valve, the device prevents leaks and ensures that no air enters the system, preserving the accuracy of measurements.
• Long Service Life: The durable construction and high-quality components extend the life of the tester.
• Precision in Measurement Results: The tester achieves accurate readings due to the installation of a calibrated limb and a pendulum arrow mounted on a steel axis.
• Coolant Contamination Resistant: The device is resistant to minor coolant contamination and can be easily cleaned with warm water after use.

Technical Data for tester Antifrogen N:

• Measuring Range: From -10C to -50C.
• Suction Volume: 52 ml.
• Overall Length of the Device: 155 mm.
• Length of Suction Hose: 200 mm.
• Packing Size: 126 x 182 x 41 mm.
• Weight: 130 g.

Operation Manual:

1. Open the Transfer Valve. Ensure the valve is open before beginning the measurement process.
2. Squeeze the Ball: Gently squeeze the ball, then lower the suction hose into the Antifrogen N solution. Slowly release the ball to draw the liquid into the measuring chamber until it is fully filled.
3. Close the Transfer Valve: After filling the chamber, close the valve to ensure no air enters the device.
4. Remove Air Bubbles: Lightly tap the back of the device to release any trapped air bubbles.
5. Take Readings: Observe and record the frost resistance readings from the antifreeze temperature sensor.

Frost Resistance Readings for Antifrogen N:

This Measurement Tester is an indispensable tool for maintaining the proper frost resistance levels in systems using Antifrogen N, ensuring optimal performance and protection against freezing in both cooling and heating applications.
