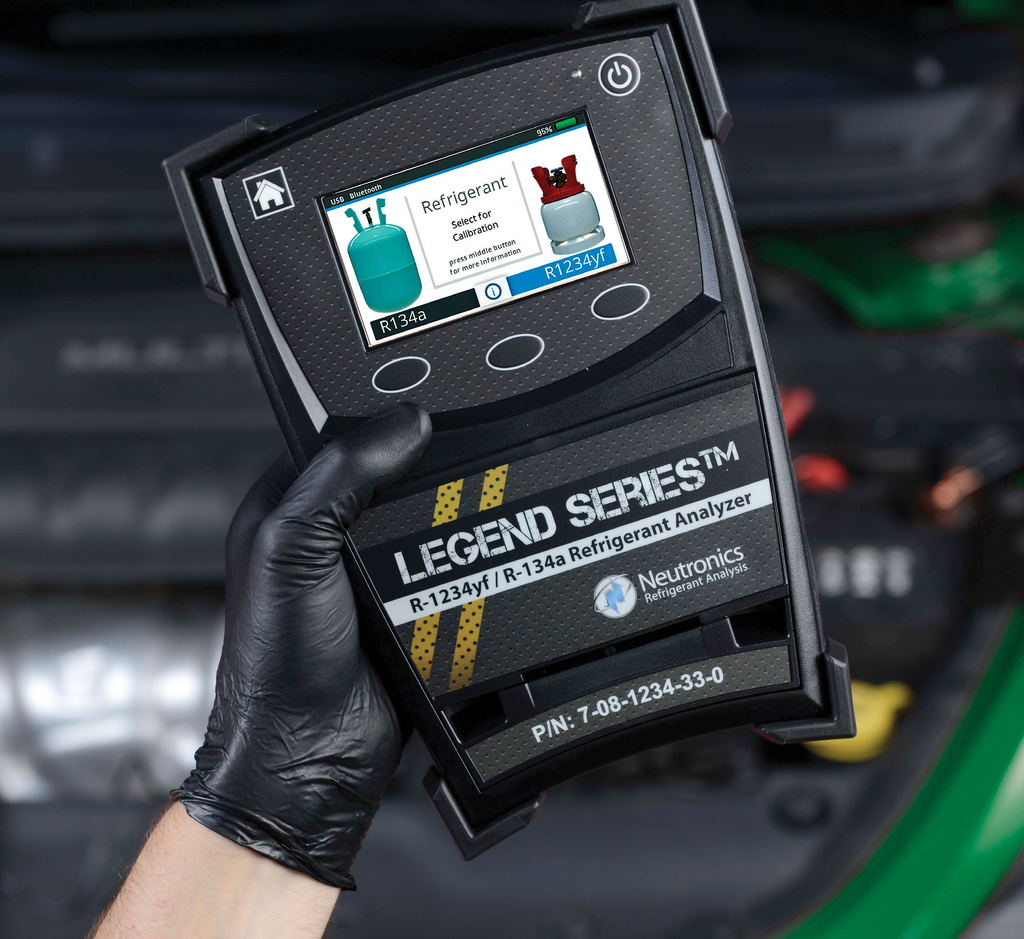

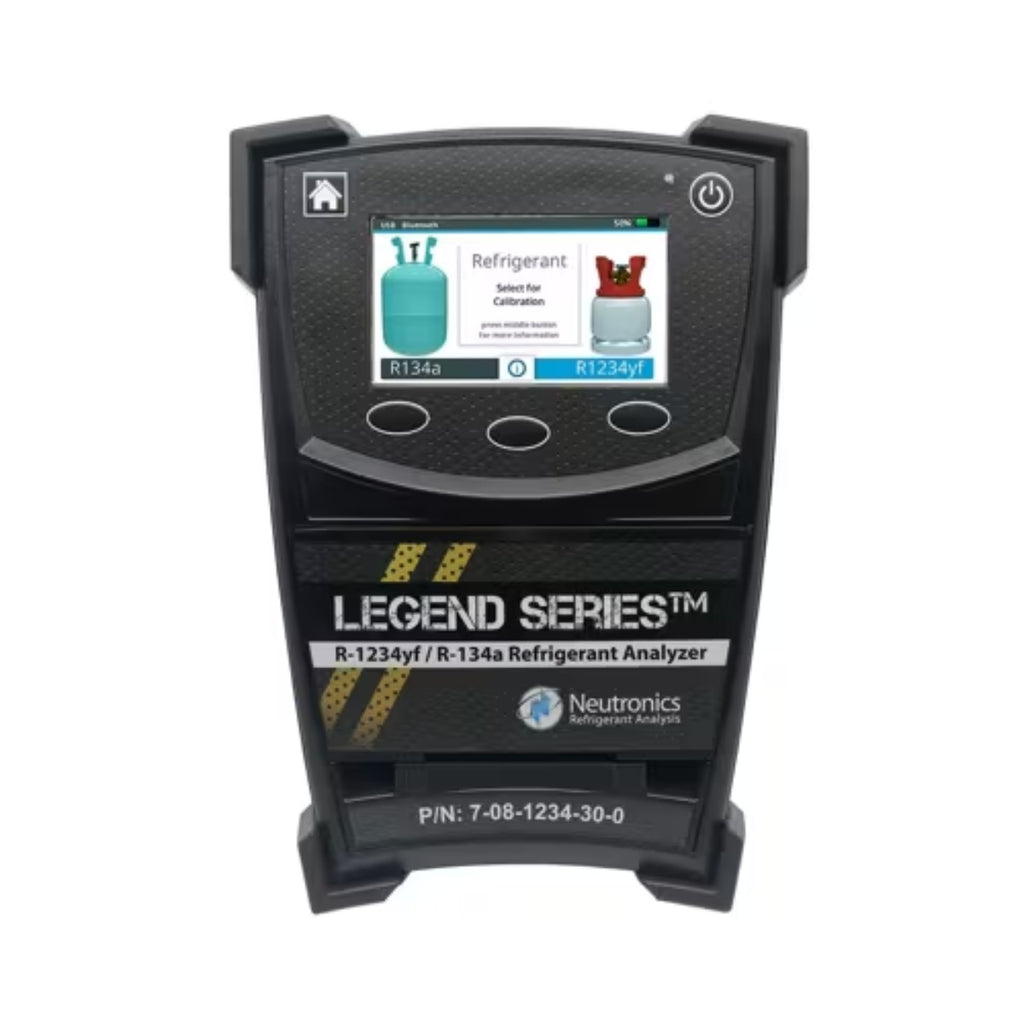

The Legend Series™ Refrigerant Analyzer is designed to handle the refrigerants used in older, current, and upcoming vehicles — all in one compact tool. Whether you are servicing R-12, R-134a, or the new R-1234yf systems, this analyzer gives you accurate and reliable refrigerant identification within seconds.
Built for global use, the Legend ID™ supports the requirements of vehicles equipped with HFO-1234yf. It meets the SAE J2912 certification standards and can be directly connected to SAE J2843 and J3030 AC service machines that include an external USB port for analyzers.
Key Features
-
Supported Refrigerants: R-134a, R-1234yf, R-12, R-22, Hydrocarbons, Unknown refrigerants, Air
-
Test Time: Approx. 90 seconds
-
Calibration: Fully automatic
-
Sample Type: Vapor only
-
Maximum Pressure: 500 PSIG
-
Operating Temperature: 50–120°F (10–49°C)
-
Power Requirement: 100–240 VAC (50–60 Hz)
-
Connectivity: USB
What You Get with Every Legend Analyzer (Standard Kit)
Each Legend Series analyzer comes fully equipped with everything you need to start testing right away:
-
Couplers for both R-134a and R-1234yf
-
Two R-1234yf sample hoses
-
Two R-134a sample hoses
-
Sample hose extensions
-
AC power supply
-
Tank adapters for R-134a and R-1234yf
-
Built-in rechargeable battery
-
Integrated air sensor and complete internal plumbing
-
All housed in a tough, portable carrying case for safe storage and easy transport
