Tester for Clariant Antifrogen L

The Tester for Antifrogen L is an required instrument for monitoring the frost resistance of water solutions used in heating and cooling systems. It is designed to provide fast and accurate results, making it an indispensable tool for professionals managing contour cooling, heating systems, and gelioinstallation. By provide the right concentration of antifreeze, this tester helps maintain the capability and longevity of your systems, preventing freezing and costly damage during cold weather.

Key Objectives of the Antifrogen L Tester

The primary purpose of the Antifrogen L tester is to measure the freezing point of Antifrogen L water solutions, particularly those treated with Antifrogen L, a high-quality heat transfer fluid. This capability is crucial for several types of systems:

1. Contour Cooling: In many industrial and commercial cooling applications, its important to assure that cooling liquids remain effective even in freezing conditions. The tester helps ensure that the antifreeze concentration is appropriate for the ambient temperature.
2. Heating Systems: In heating circuits, the tester prevents the risk of freezing by ensuring the right amount of antifreeze is present. This is particularly important in outdoor heating systems or in regions with harsh winters.
3. Solar System: Solar heating installations expect precise temperature control, and the Antifrogen L tester helps maintain optimal performance by measuring antifreeze levels.

Features and Design of the Instrument

The tester for Antifrogen L combines technical precision with modern design, ensuring accurate results while being user-friendly and durable. Key features include:

• Technically Advanced Design: The tester boasts a robust and modern design, engineered for accuracy and ease of use. Its stable plastic housing ensures the device can withstand demanding conditions without compromising performance.
• Simple and Fast Measurement: The device allows for quick and accurate frost resistance measurements, making it suitable for professionals who need reliable results without delays.

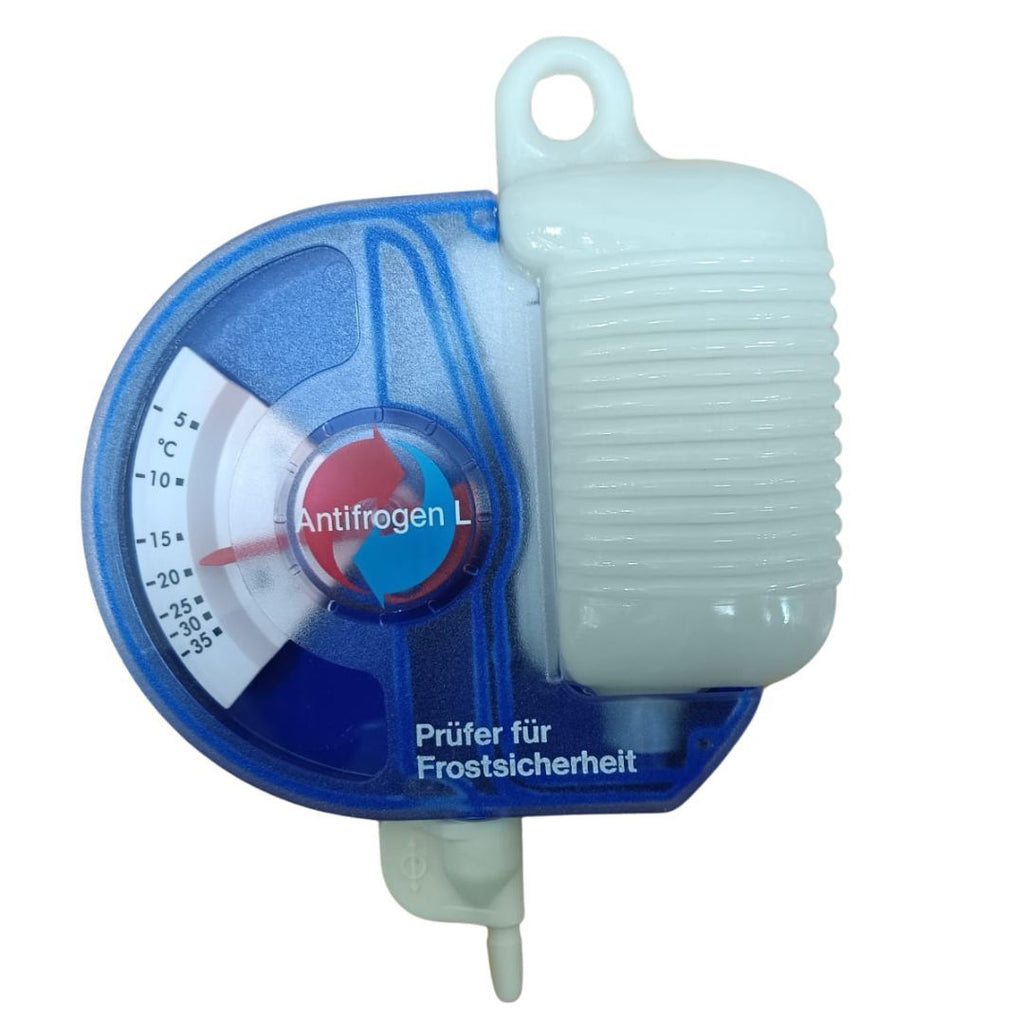

• Pendulum Pointer: A unique feature of the tester is the pendulum pointer, which allows for precise readings even when the device is not perfectly vertical. This feature ensures ease of use in various working conditions.
• Automatic Temperature Compensation: This crucial feature adjusts readings to compensate for temperature fluctuations, ensuring that results remain accurate even in varying environmental conditions.
• Rotary Valve Closure: The tester is equipped with a rotary valve closure, which prevents leaks and air ingress. This ensures the integrity of the measurement and prevents errors caused by air bubbles.
• Long Service Life: Built with high-quality materials, including a steel axis for the pendulum pointer, the tester is designed for longevity, providing reliable performance over time.

Specifications of Antifrogen L Tester

The tester is compact yet highly effective, with technical specifications designed to meet the needs of professionals working in HVAC and refrigeration systems:

• Measurement Range: The device operates within a range of -5C to -35C, covering the typical antifreeze attention required in heating and cooling systems.
• Suction Volume: 52 ml, enough to provide an accurate sample for analysis.
• Total Length: 155 mm, making it easy to handle and store.
• Suction Hose Length: 200 mm, offering sufficient reach for most applications.
• Package Dimensions: 126 x 182 x 41 mm.
• Weight: 130 g, making it lightweight and portable.

Step-by-Step Operating Instructions

Using the Antifrogen L tester is simple and straightforward. Follow these steps for accurate measurements:

1. Open the Diverter Valve: Begin by opening the valve to allow the system to function.
2. Squeeze the Ball and Suck the Liquid: Lower the suction hose into the antifreeze liquid and slowly squeeze the ball to fill the measuring chamber.
3. Close the Diverter Valve: Once the chamber is filled, close the valve to prevent leaks.
4. Remove Air Bubbles: If air bubbles form inside the measuring chamber, gently tap the back wall to release them.
5. Read the Results: Observe the pendulum pointer to determine the frost resistance of the liquid.
6. Rinse with Warm Water: After each use, wash the tester with warm water to prevent contamination and maintain its accuracy.

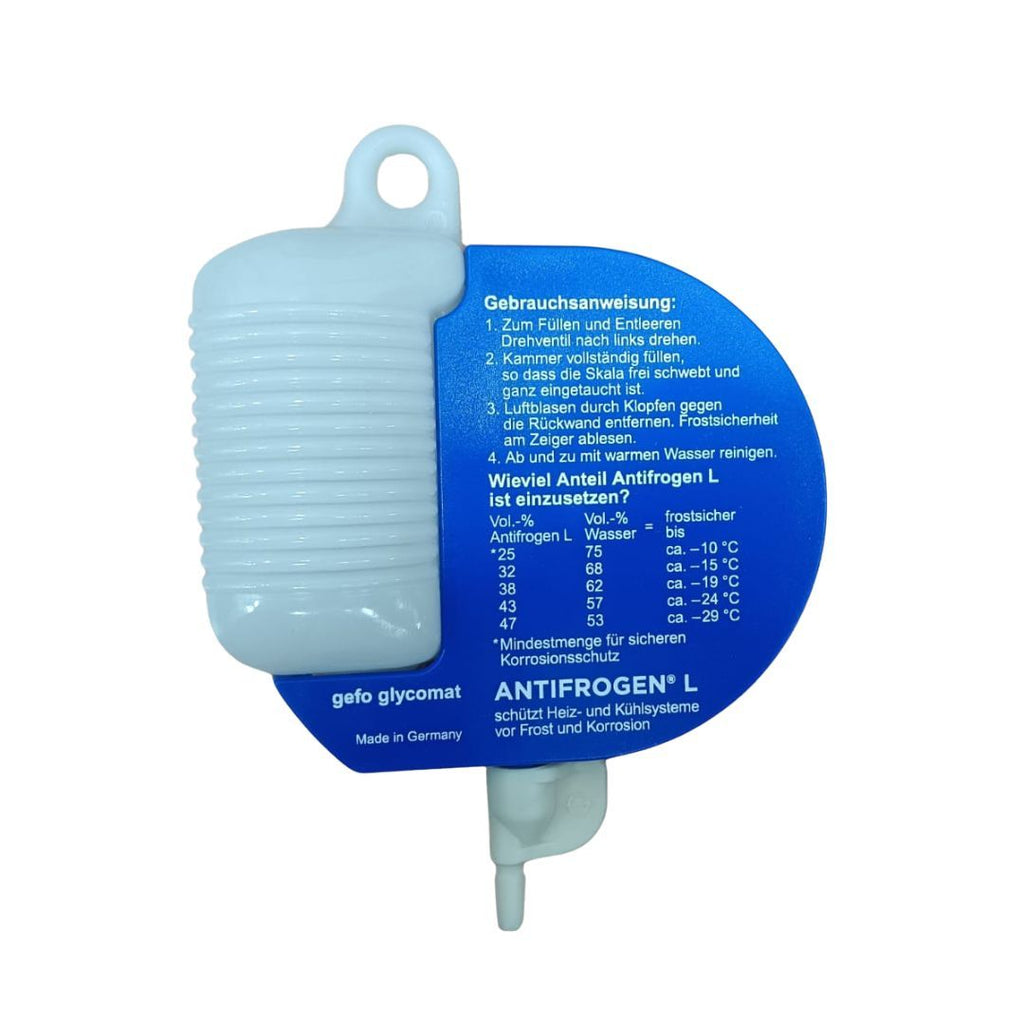

Frost Resistance Data for Antifrogen Tester

The tester allocate reliable frost resistance data, which corresponds to the percentage of Antifrogen L concentration in the solution:

• At -10C, it should be 25%.
• At -15C, the concentration increases to 32%.
• At -19C, 38% is recommended.
• At -24C, a 43% concentration is ideal.
• At -29C, the antifreeze concentration should be 47%.
