Testo 550i Smart Kit - App-controlled digital manifold

Roll over image to zoom in Click on image to zoom

Testo 550i Smart Kit - App-controlled digital manifold

Name: Testo 550i Smart Kit - App-controlled digital manifold
Brand: Testo
SKU: 0564 2550
Price: 26400.0 INR
Availability: InStock

Save 22%

Testo

Price:

Rs. 26,400.00 Rs. 34,000.00

Quantity:

Share this product

Product Description

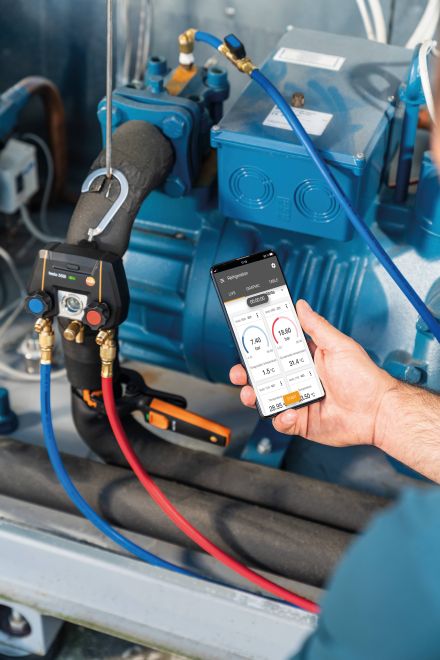

From the measurement itself through to the documentation – thanks to the app, you can have your everyday servicing and maintenance work on your smartphone or tablet. The testo 550i digital manifold is equipped with Bluetooth, 2-way valve block and a sturdy hook, and can be fully controlled via app and smartphone or tablet – for flexible, fast measurements and digital documentation.

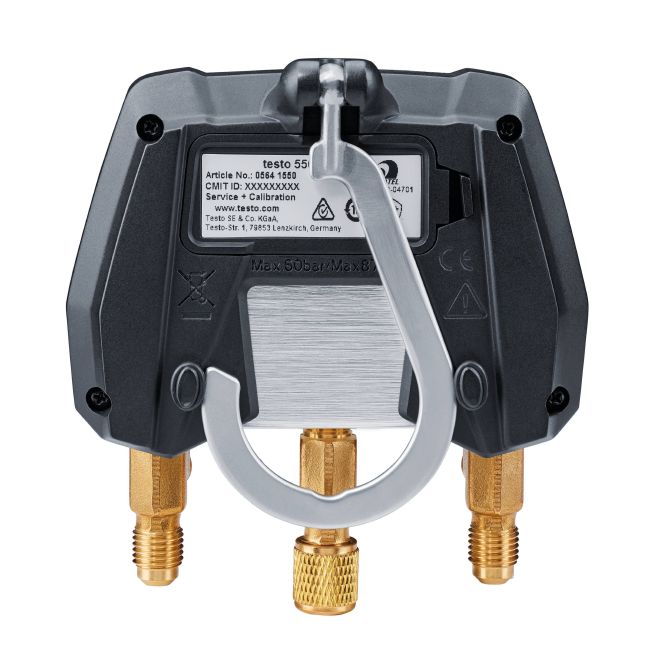

testo 550i – App-controlled digital manifold with Bluetooth and 2-way valve block

For carrying out exceptionally fast, easy measurements on refrigeration and air conditioning systems and heat pumps
testo Smart App: Control your servicing and maintenance tasks completely via app and smartphone or tablet, enjoy clearly presented results and digital documentation, set your own favourites, and always have the latest refrigerants
Maximum reliability and convenient handling in environments that are difficult to access thanks to an exceptionally compact, extremely robust housing with IP54 protection class
Maximum flexibility for working wirelessly: Bluetooth probes for temperature, pressure and humidity automatically connect to the measuring instrument via the testo Smart App
Continuously high performance in all conditions: You can depend on this manifold from Testo – it combines proven Testo quality with excellent robustness

Delivery Scope

testo 550i digital 2-way manifold including batteries (3 x AAA), calibration protocol and instruction manual.

Testo has put together the practical testo 550i Smart Kit for you – so you’ll be optimally equipped to tackle your measuring tasks right away.

Technical Data

Pressure measurement
Measuring range	-1 to 60 bar
Accuracy	±0.5 % fs
Resolution	0.01 bar
Probe connection	3 x 7/16" – UNF
Overload rel. (high pressure)	65 bar

General technical data
Weight	595 g
Dimensions	77 x 109 x 63 mm
Operating temperature	-10 to +50 °C
Protection class	IP54
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	Black
Auto-off	10 min*
Battery type	3 AAA micro batteries
Battery life	130 h
Data transfer	Bluetooth®
Radio range	150 m
Refrigerants in instrument	R407H; R23; R290; R1234yf; R442A; R134a; R123; R452B; R438A; R421A; R453a; R401B; R1233zd; R410A; R407A; R407C; R452A; R401A; R422C; R427A; R422B; R424A; R125; R414B; R404A; R408A; R448A; R422D; R12; R114; R421B; R449A; R409A; R420A; R444B; R32; R454A; R124; R402A; R450A; R407F; R416A; R13; R437A; R1234ze; R454B; R402B; R22; R434A; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)
Refrigerants update via App	R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Storage temperature	-20 to +60 °C

* when not connected via Bluetooth
