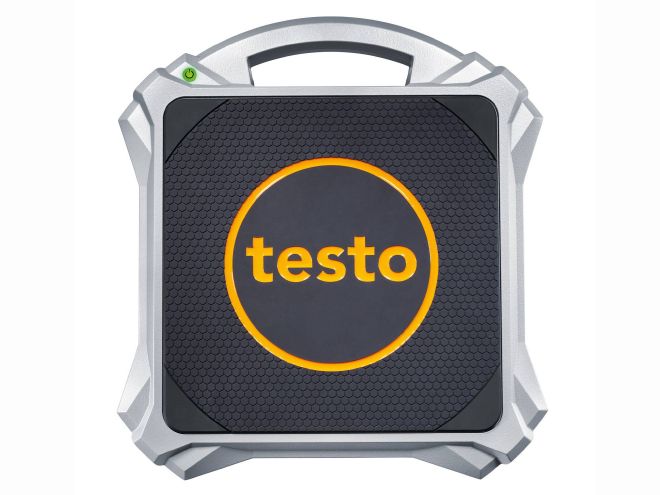

Testo 560i Digital Refrigerant Scale and Valve

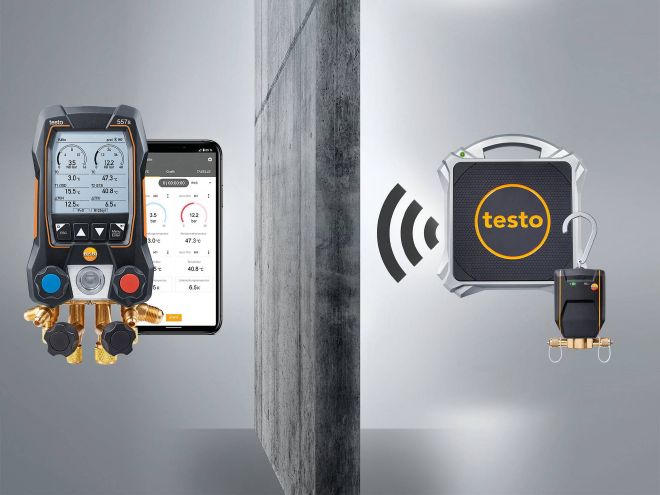

The testo 560i is built to measure refrigerant weight with excellent speed and accuracy. The process is fully wireless, and readings can be viewed using a Testo manifold or through the testo smart app. As soon as the device is powered on, it connects automatically to your phone or manifold via Bluetooth.

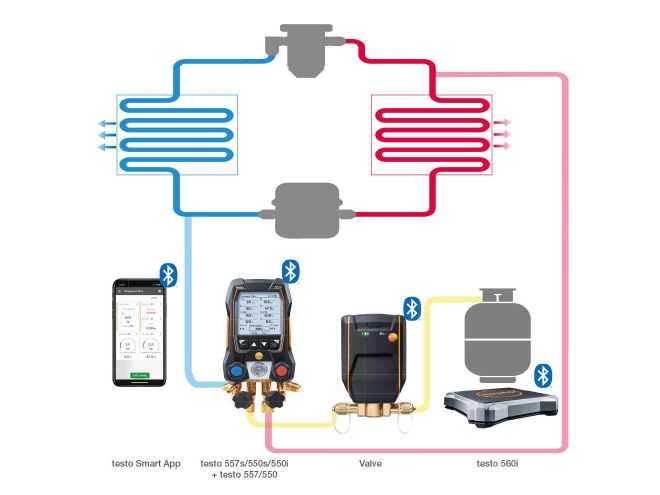

This system offers a stable wireless connection of up to 30 meters, and when used with testo refrigerant gauges, the range can extend up to 150 meters. An added advantage is its compatibility with the intelligent valve (optional), which supports automatic refrigerant charging for refrigeration systems and heat pumps based on superheat, subcooling, or target weight.

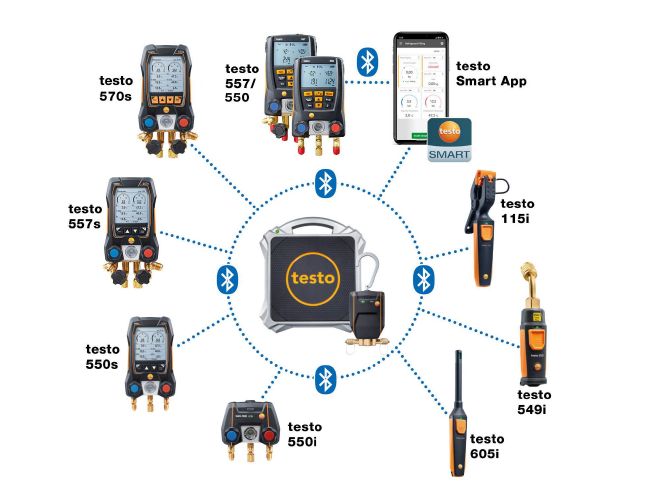

The scale is compatible with Testo digital manifolds 557s, 550s, 550i, and even earlier models 557 and 550. It also works smoothly with Smart Probes, including the 115i, 549i, and 605i, along with the Smart App for Android and iOS.
All refrigerant measurements can be completed wirelessly, and charging can be controlled directly from your smartphone or manifold. When combined with the intelligent valve (sold separately), the system delivers precise and automated filling according to defined parameters, with all measurements stored digitally in the App.

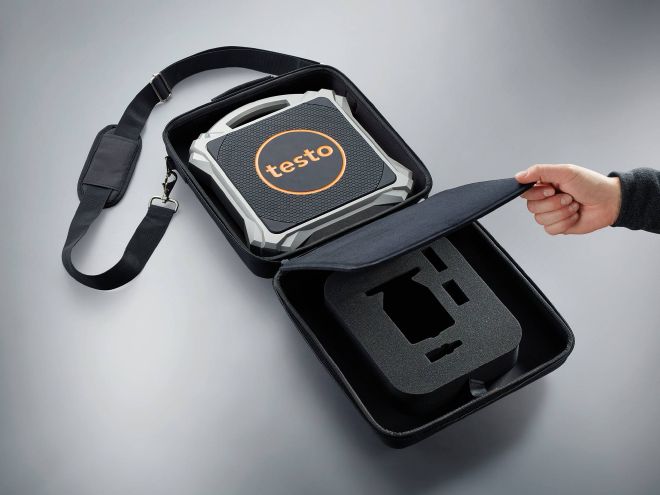

The equipment is compact, lightweight, and designed for convenient field use, supported by a durable carrying handle and a strong protective shoulder bag.
Key Benefits of Test 560i
-
High accuracy with 10 g resolution
-
Handles refrigerant cylinders up to 100 kg
-
Extended Bluetooth capability up to 150 m when paired with testo refrigerant gauges
-
Fully automated charging using the intelligent valve
-
Secure cylinder placement with 3D corner supports and an anti-slip rubberized surface
-
IP44 protection ensures resistance to dust and water
-
Lightweight design with a high-quality transport bag
-
Up to 70 hours of use with AA batteries and auto shut-off
-
Performs reliably outdoors between –10°C and 50°C
Include in the Package
